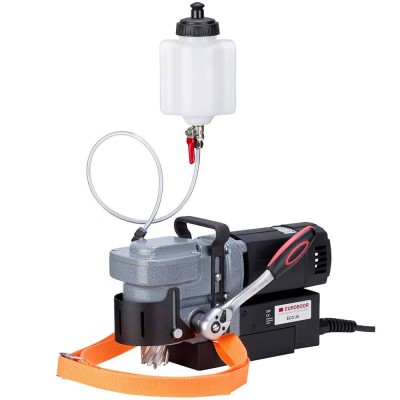

สว่านแท่นแม่เหล็ก Euroboor ECO.36 สำหรับเจาะในที่จำกัด
Low profile magnetic drilling machine Ø 12 - 36 mm / 10.3 kg
The Euroboor ECO.36 magnetic core drilling machine is the lowest drilling machine in the market, measuring only 165 mm in height. This magnetic core drilling machine is perfect for drilling in spaces with limited heights such as H-beams, steel structures, plates, profiles, etc. The portable ECO.36 is equipped with a powerful magnet, user friendly Quick Connect cutter fitment system, and easy release / lock feed handle for both left and right operation.
Availability: In stock
0 THB
This machine features:
One-speed gearbox
User friendly Quick-Connect cutter fitment system
Carrying handle and safety strap attachment
Right/left mount ability of detachable ratchet feed handle
Integrated tool cooling and lubrication
Additional features
Removable and slidable safety guard
Lubrication bottle with magnet attachment
Strong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore lasts longer
Technical data
| Annular cutting | Ø 12 - 36 mm |
| Twist drilling | Ø 1 - 14 mm |
| Countersinking | Ø 10 - 40 mm |
| In-corner drilling | 0˚ - 50 mm (center to edge) 90˚ - 53 mm (center to edge) 45˚ - 60 mm (center to edge) |
| Length | 310 mm |
| Width | 135 mm |
| Height | 165 mm |
| Stroke | 40 mm |
| Weight | 10.3 kg* |
| Magnet (l x w x h) | 80 x 160 x 37 mm |
| Magnetic force | 1,200 kg |
| Motor power | 1,050 W |
| Total power | 1,100 W |
| Speed (no load) | 700 rpm |
| Speed (load 1,050 W) | 400 rpm |
| Spindle (Weldon) | 19.05 mm |
| Voltage | 220 - 240 V / 50 - 60 Hz |
| *Exclusive power cord and handle |
| Brands | EUROBOOR |
| Weight | 10.3 |
Write Your Own Review
You may also be interested in the following product(s)
-

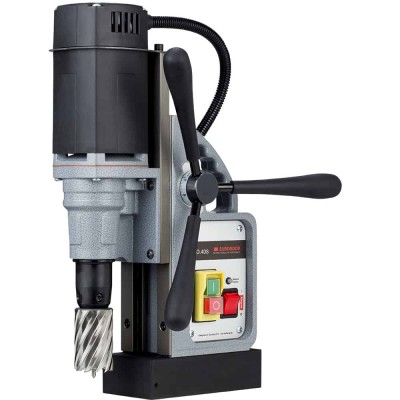

สว่านแท่นแม่เหล็กไฟฟ้า Euroboor ECO.40S
