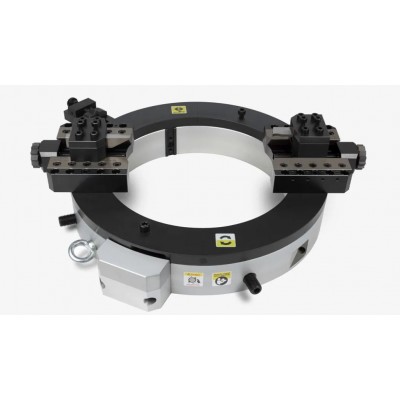

เครื่องตัดและบากท่อ Split Frame Pipe Cold Cutting and Beveling Machine
The clamshell pipe cold cutter is ideal for all types of pipe cold cutting, beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, counterbore operations, as well as weld end preparation on open ended pipe, Ranging from 3/4” to 56 inches O.D.(DN20-1400), on most wall thicknesses and material.
สถานะของสินค้า : สินค้าพร้อมส่ง
0 บาท
Air type Series split frame pipe cutting and beveling machine
Air motor Specification: Rotation speed: 226RPM; Torque:117Nm; Power:3.77HP
Advantage: Explosion-proof; Stable performance; Simple stucture makes easy to maintenance
Electric type Series split frame pipe cutting and beveling machine
Electric METABO motor Specification: 230V-50/60HZ 2400W 11.0A
N 6600/Min (rpm)
Made in Germany
Hydraulic type Series split frame pipe cutting and beveling machine
Power supply:380-440V 3PH 50/60HZ, 2-60L per [email protected]
Advantage: Powerful drive, high efficiency; Stable performance; Low noise; Speed adjustable;
Ideal for heavy wall thickness & large size pipe
Integrated frame adopt high strength & precision ring structure, apply for pipe cutting and beveling, especially for batch working of cutting & beveling, very high efficiency. Has electric and pneumatic driven mode for opiton.
Adopt METABO motor: low noise, long life, stable performance and perfect speed adjustable function, with CE certificate.
METABO Motor: 1300W 6.0A
Split frame
Machine quickly spilt to mount around outside diameter of in-line pipe
Cut or Cut/Bevel simultaneously
Cuts and bevels simultaneously leaving a clean precision prep ready for welding
Cold cut/Bevel
Hot torch cutting requires grinding and produces an undesirable heat affected zone Cold cutting/beveling improve safety
Low Axial & Radial Clearance
Tool feed automatically
Cut and bevel pipe of any wall thickness. Materials include: Carbon steel, alloy, stainless steel as well as other material Pneumatic, electric and hydraulic type for option Machining OD of pipe from 3/4″ upto 56″
| แบรนด์ | โนด้า |
