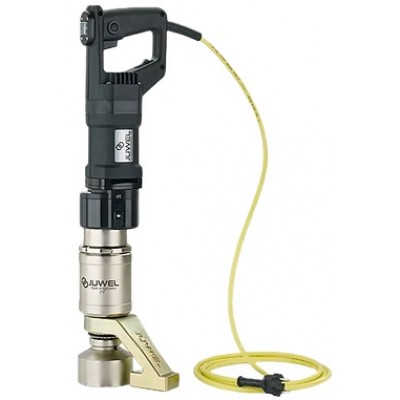

ประแจทอร์คระบบไฟฟ้า JUWEL Electric Torque Wrench
- 2-speed gearbox right/left
- Electric torque wrenches available from 200 to 15,000 Nm of torque
- 200 torque settings
- Torque cut-off system at target torque with an accuracy of +/- 3.5% for the same joint
- Available in 230 and 110 volts
- High speeds for precise and fast screwdriving
- The control unit can be positioned as required thanks to the 360° freely rotatable drive motor
- With the help of the JUWEL load release, the drive motor turns in the opposite direction of rotation for a short moment when the screw connection is complete. This enables the socket to be easily released.
- Support made of high-strength material
สถานะของสินค้า : สินค้าพร้อมส่ง
0 บาท
Models
A single electric torque wrench within the TES series would not meet the diverse requirements of our customers' bolting cases. After thousands of bolting operations accompanied by us, we have seen a lot. The multi-stage JUWEL modular gearbox with additional bearing for increased robustness or the optimal dimensioning of the support are essential empirical values that we are happy to pass on to you.
Weight-optimized design ideal for small torques
The TES-84 and -104 models are your reliable torque wrenches for screw connections with torques of up to 1,200 Nm.
Robust construction for demanding screwing cases
Starting with the electric nut runners TES-244/245, we distinguish between heavy-duty (left) and standard gear units (right). The heavy-duty gear units are characterized by additional bearings and a modular gear unit design. This highly robust design is ideal for intensive and regular bolting operations.

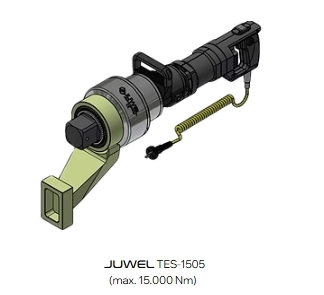

TES - torques up to 15,000 Nm
For decades, the JUWEL TES series has been synonymous with high reliability and accuracy even under extreme conditions. The three-stage JUWEL modular gearbox with additional bearing enables you to achieve torques of up to 15,000 Nm. In addition, we equip our devices from TES-904/905 with a sturdy handle for ergonomic handling.
Summary
The JUWEL-TES series is adapted to the requirements of our customers and available with various performance levels. However, all models have one thing in common: Driven by the passion to create a sustainable and valuable electric torque wrench for our customers, you can look forward to a robust and reliable electric torque wrench - a JUWEL among tools.

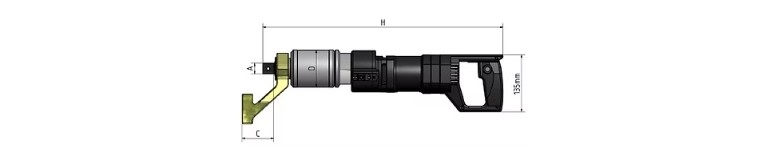

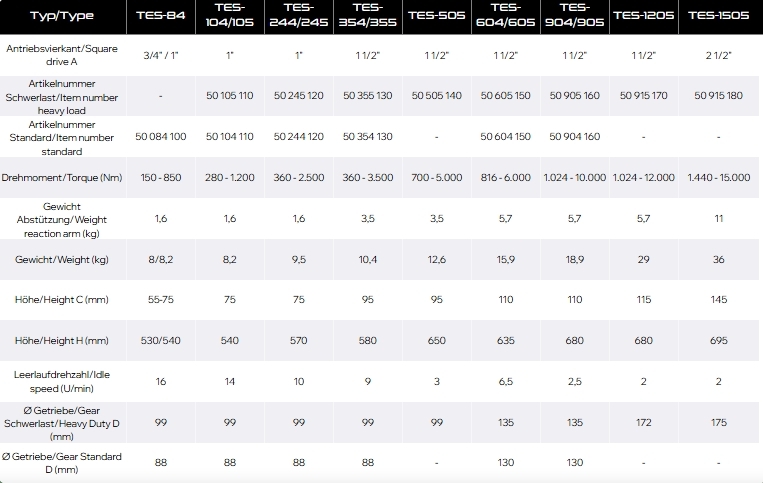

Technical Data
| แบรนด์ | ยูเวล |
คุณอาจจะสนใจในสินค้าดังต่อไปนี้
-
ประแจทอร์คระบบไฟฟ้า JUWEL Electric Torque Wrench TESM series - Multi design -
- 2-speed gearbox right/left
- Infinitely 360° lockable drive to meet all space requirements
- Electric torque wrenches available from 150 to 5,000 Nm of torque
- 200 torque settings
- Torque cut-off system at target torque with an accuracy of +/- 3.5% for the same joint
- Available in 230 and 110 volts
- High speeds for precise and fast screwdriving
- The control unit can be positioned as required thanks to the 360° freely rotatable drive motor
- With the help of the JUWEL load release, the drive motor turns in the opposite direction of rotation for a short moment when the screw connection is complete. This enables the socket to be easily released.
- Reaction arm made of high-strength material
0 บาท -
ประแจทอร์คระบบไฟฟ้า JUWEL Torque Wrench TEWS Series (Electric) - Angled design -
- 2-speed gearbox right/left
- Electric Torque wrenches available from 150 to 12,000 Nm of torque
- 200 torque settings
- TTorque cut-off system at target torque with an accuracy of +/- 3.5% for the same joint
- Available in 230 and 110 volts
- Perfect for bolting under tight conditions
- The control unit can be positioned as required thanks to the 360° freely rotatable drive motor
- With the help of the JUWEL load release, the drive motor turns in the opposite direction of rotation for a short moment when the screw connection is complete. This enables the socket to be easily released.
- Support made of high-strength alloy
0 บาท
