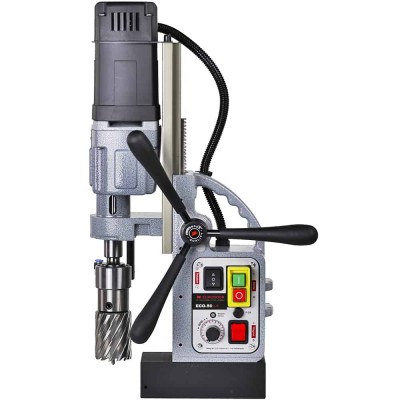

สว่านแท่นแม่เหล็กเจาะต๊าปเกลียว Euroboor ECO.50+/T
Magnetic drilling machine Ø 12 - 50 mm / 13.5 kg
Our ECO.50+/T magnetic core drilling machine is suitable for both drilling and tapping. The Euroboor ECO.50+/T with Morse Taper 2 spindle is equipped with innovative electronics which offer more safety, significantly reduce the risk of damage of the machine, tool and workpiece and protects the user in case of excessive vibrations or sudden displacement. The lifespan is considerably longer and you avoid high maintenance costs.
สถานะของสินค้า : สินค้าพร้อมส่ง
0 บาท
This machine features:
Particularly suitable for tapping
Power surge & fluctuation protection
Carbon brush wear indicator & automatic shut-off
Additional features
Right/left rotating functionality
Electronic speed adjustment
Two-speed gearbox
Morse Taper 2 spindle with integrated tool cooling and lubrication
High-precision height adjustment for:
Low maintenance
Minimal wear correction
Integrated slide for:
High accuracy
Enlarged lifecycle
Minimal vibration
Strong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore lasts longer
Reduced risk of damaging machine, tools and workpiece and hurting operator
Suitable for use in areas and workplaces where power supply is of less quality
Reduced risk of armature damage
Reduced risk of control unit(s) damage
Timely service notification to avoid additional cost by unexpected downtime or unnecessary part replacement
Technical data
| Annular cutting | Ø 12 - 50 mm |
| Twist drilling | Ø 1 - 23 mm |
| Countersinking | Ø 10 - 55 mm |
| Tapping | M3 - M20 |
| Length | 320 mm |
| Width | 210 mm |
| Height | 385 - 540 mm |
| Stroke | 170 mm |
| Weight | 13.5 kg* |
| Magnet (l x w x h) | 170 x 85 x 48 mm |
| Magnetic force | 1,850 kg |
| Motor power | 1,250 W |
| Total power | 1,375 W |
| Speed (no load) | (I) 100 - 280 rpm (II) 185 - 530 rpm |
| Speed (load 1,250 W) | (I) 250 rpm (II) 460 rpm |
| Spindle (Weldon) | MT2 19.05 mm |
| Voltage | 220 - 240 V / 50 - 60 Hz |
| *Exclusive power cord and handles |
| แบรนด์ | ยูโรบอร์ |
| น้ำหนัก | 13.5 |
