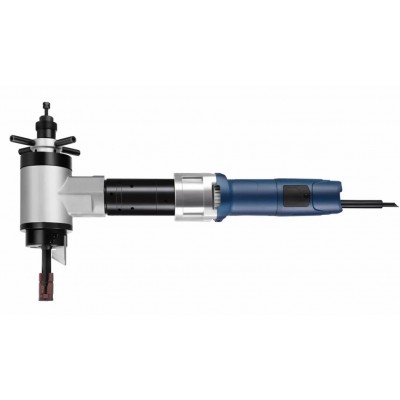

เครื่องบากท่อ ID-Mounted & OD-Mounted Pipe Beveling Machine
Code : ID-OD-MountedThe ID-Mounted beveling machine operation utilizes an expandable mandrel which is slid into the open end of the pipe. A draw nut is tightened, which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the material from the end, a bevel is produced which conforms to the angle predetermined by the angle ground into the bit. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.
-

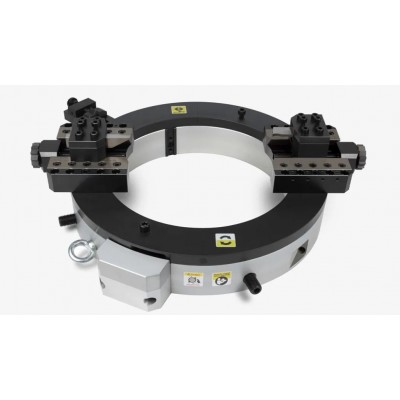

เครื่องตัดและบากท่อ Split Frame Pipe Cold Cutting and Beveling Machine
Code : Split Frame PipeThe clamshell pipe cold cutter is ideal for all types of pipe cold cutting, beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, counterbore operations, as well as weld end preparation on open ended pipe, Ranging from 3/4” to 56 inches O.D.(DN20-1400), on most wall thicknesses and material.
-

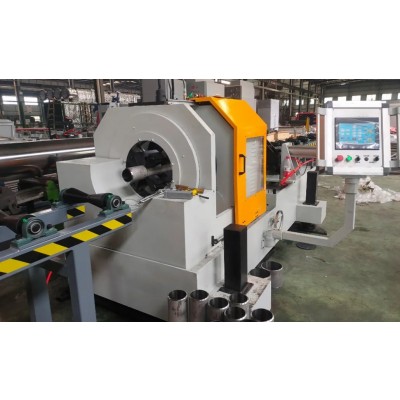

เครื่องตัดและบากท่อ Stationary Pipe Cutting & Beveling Machine
Code : Stationary Pipe Cutting & Beveling MachineStataionary pipe cold beveling and cutting machine will provide high efficiency in-house pipe pre-fabricate job.
There are light-duty and heavy duty for options, also NODHA provides auxiliary equipments such as converying roller system to help users improve efficiency and reduce labor costs.
CNC pipe beveling machine SPB series, covering pipe diameter range of 2 “-48”, according to ASME B16.25 standard, processing various forms of beveling, to meet the needs of various welding seam: V type beveling, U type beveling, compound beveling and counter boring.
