เครื่องบากขอบ ลบคม metabo รุ่น KFMPB 15-10 F Paddle Switch (สวิทช์เซฟตี้)

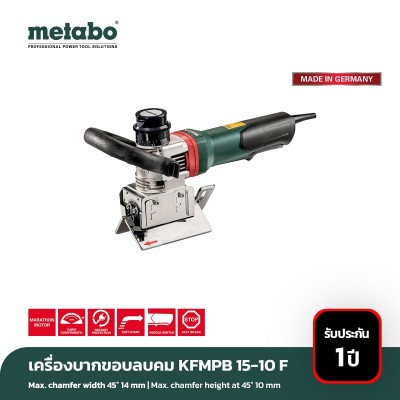

เครื่องบากขอบ ลบคม metabo รุ่น KFMPB 15-10 F

More Views

เครื่องบากขอบ ลบคม metabo รุ่น KFMPB 15-10 F Paddle Switch (สวิทช์เซฟตี้)

Product code: 601755500

- Rated input power: 1550 W
- Max. chamfer height at 45°: 10 mm / 3/8 "

Availability: In stock

94,160 THB

How To Order

0 Review(s) | Be the first to review this product

Metal bevelling tool for chamfer heights up to 10 mm for weld seam preparation with maximum user safety by virtue of a dead-man switch and brake system
One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working
Precise setting of the chamfer angle directly via the guide plates
Universal milling head with three carbide indexable inserts for all chamfer angles from 0-90°
Controlled working by virtue of large-scale guide plates
Stop roller to guide along pipes for easy preparation of weld seams
Bail handle adjusts without tools for secure, even guiding
Metabo Marathon-motor with patented dust protection for long service life
Tacho Constamatic (TC) Full-wave Electronics: fast work progress by means of constant speed under load
Patented, mechanical brake system stops the router bit within 2 seconds after switching off
Electronic overload protection, soft start and restart protection
Protection of the user by virtue of lateral plates for conveying the chips

The machine shown may differ in equipment and technical details depending on the configuration. Kindly pay attention to delivery scope and product description. Accessories included only if listed in the delivery scope.

Characteristics

No-load speed: 12500 rpm
Rated input power: 1550 W
Output power: 840 W
Type of edges: Chamfer
Max. chamfer width 45°: 14 mm / 9/16 "
Max. chamfer height at 45°: 10 mm / 3/8 "
Grading of cutting depth setting: 0.1 mm / 0.00394 "
Curves smallest internal Ø: 75 mm / 2 15/16 "
Weight (without power cable): 5.1 kg / 11.2 lbs
Cable length: 4 m / 13 ft

Vibration

Vibration: 2.5 m/s²
Uncertainty of measurement K: 1.5 m/s²

Noise emission

Sound pressure level: 91 dB(A)
Sound power level (LwA): 102 dB(A)
Uncertainty of measurement K: 3 dB(A)

Brands	METABO
included in price	3 Carbide indexable inserts Universal Screwdriver SW 4 with T-handle Open-jawed spanner SW 10 Bow-type handle Metal carry case Stop roller Screwdriver for Torx screws 15
Weight	5.1
