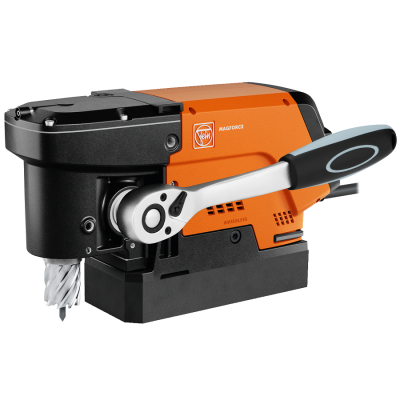

เครื่องใหม่-สว่านแท่นแม่เหล็กไฟฟ้าไฟน์ รุ่น KBC 36 MAGFORCE (230V)

มุมมองเพิ่มเติม

เครื่องใหม่-สว่านแท่นแม่เหล็กไฟฟ้าไฟน์ รุ่น KBC 36 MAGFORCE (230V)

รหัสสินค้า: C-72732362300

Compact magnetic core drill for up to 36 mm

Extremely small and light single-speed compact magnetic core drill with minimum dimensions for use in tight spaces in the workshop and on the construction site.

สถานะของสินค้า : สินค้าพร้อมส่ง

0 บาท

DETAILS

  • Extremely small and light for working in tight and difficult-to-reach spots – including vertically and overhead – thanks to height of 169 mm, a length of 290 mm and a weight of 8.5 kg.
  • Extremely low wear and long-life tool design with spindle sleeve feed without clearance for accurate drilling results in tough use in industry and manual trades.
  • Very powerful and maintenance-free brushless 1200 W high-power motor with high speed stability for continuously fast work progress as well as forward / reverse running and electronic speed setting for all drilling applications, such as core drilling, twist drilling and tapping and countersinking..
  • High gearbox positioning for optimum view of the drilling point.
  • Large installation space under the drill spindle with a stroke range of 46 mm.
  • Space-saving operation on both sides with ratchet.
  • Combined drive shaft, 1/2” square and 8 mm hexagon socket.
  • Intuitive operating concept avoids mix-ups and can be clearly seen by the user.
  • Convenient magnetic holding force display..
  • Tilt sensor stops the drill motor when the tool slips or tilts.
  • Integrated handle.
  • Speed saving "memory function".
  • Personal safety switch.
  • Slot for 5 mm hexagon socket wrench on the tool itself.
  • Internal cooling lubrication by means of hand pump.
  • Ideally equipped for every job. Mobile working with the L-BOXX system.

Technical Data:

  • Input  1,200 W
  • Output  680 W
  • Speed, full load  130 - 610 rpm
  • Speed, no load;130 - 660 rpm
  • Carbide core drill bit max.  36 mm
  • HSS core drill max.  36 mm
  • Core drill, drilling depth max.;35 mm.
  • Twist drill max.  16 mm
  • Tapping.;M 12
  • Countersinking max.  32 mm
  • Core drill holder.;3/4 in Weldon
  • Width across corners.;40 mm
  • Height.;169 mm
  • Stroke.;46 mm
  • Width across corners.;40 mm
  • Height.;169 mm
  • Magnetic holding power.;10,000 N
  • Magnetic foot dimensions.;175 x 80 mm
  • Cable with plug.;3 m
  • Weight according to EPTA.;8.50 kg
แบรนด์ ไฟน์
