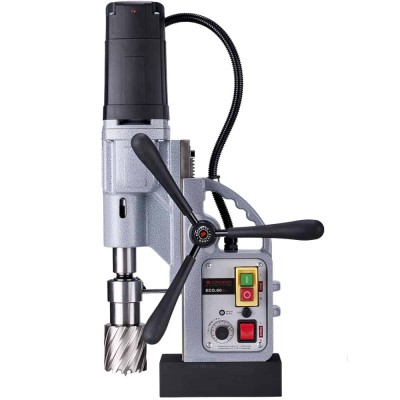

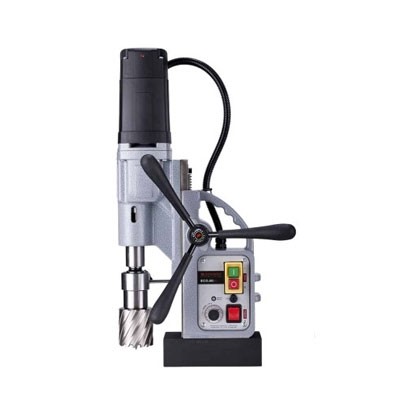

สว่านแท่นแม่เหล็กไฟฟ้า Euroboor ECO.60S+ Magnetic drilling machine

มุมมองเพิ่มเติม

สว่านแท่นแม่เหล็กไฟฟ้า Euroboor ECO.60S+ Magnetic drilling machine

รหัสสินค้า: 11060201132004

Magnetic drilling machine Ø 12 - 60 mm / 12.9 kg

The Euroboor ECO.60S+ magnetic core drilling machine has a powerful 1,600 W motor, an oil lubricated gearbox and overheat protection. This portable magnetic core drilling machine benefits from innovative electronics which offer more safety, significantly reduce the risk of damage of the machine, tool and workpiece and protects the user in case of excessive vibrations or sudden displacement. The lifespan is considerably longer and you avoid high maintenance costs. This light and reliable machine is a true addition for every workplace.

สถานะของสินค้า : สินค้าพร้อมส่ง

0 บาท

Features:





 Overheat protection

 Gyro-Tec

 Power surge & fluctuation protection

 Carbon brush wear indicator

 Automatic shut-off

Additional features

Two-speed oil lubricated gearbox

Electronic speed adjustment

High-accuracy capstan hub

Morse Taper 3 spindle with integrated tool cooling and lubrication

Integrated slide for:

  High accuracy

  Enlarged lifecycle

  Minimal vibration

High-precision height adjustment for:

  Low maintenance

  Minimal wear correction

Overload protection

Smart Restart technology

Strong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore lasts longer

Reduced risk of damaging machine, tools and workpiece and hurting operator

Suitable for use in areas and workplaces where power supply is of less quality

Reduced risk of armature damage

Reduced risk of control unit(s) damage

Timely service notification to avoid additional cost by unexpected downtime or unnecessary part replacement

Technical data

Annular cutting Ø 12 - 60 mm
Twist drilling Ø 1 - 23 mm
Countersinking Ø 10 - 65 mm
Length 320 mm
Width 200 mm
Height 452 - 622 mm
Stroke 170 mm
Weight 12.9 kg*
Magnet (l x w x h) 168 x 84 x 49 mm
Magnetic force 1,850 kg
Motor power 1,600 W
Total power 1,700 W
Speed (no load) (I) 60 - 275 rpm
(II) 100 - 500 rpm
Speed (load 1,600 W) (I) 60 - 275 rpm
(II) 100 - 500 rpm
Spindle (Weldon) MT3 19.05 mm
Voltage 220 - 240 V / 50 - 60 Hz
*Exclusive power cord and handles
แบรนด์ ยูโรบอร์
น้ำหนัก 12.9

เขียนรีวิวสินค้าของคุณเอง

คุณกำลังรีวิว: สว่านแท่นแม่เหล็กไฟฟ้า Euroboor ECO.60S+ Magnetic drilling machine

คุณอาจจะสนใจในสินค้าดังต่อไปนี้

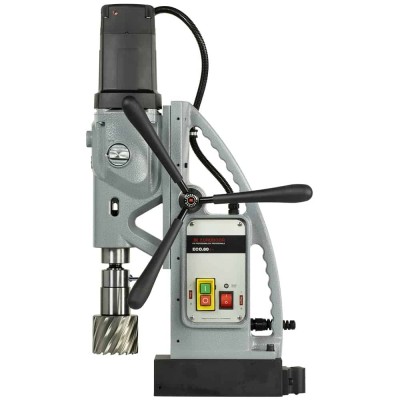

  • สว่านแท่นแม่เหล็ก Euroboor ECO.80S+ Magnetic drilling machine

    Magnetic drilling machine Ø 12 - 80 mm / 27.3 kg

    Thanks to its four-speed oil lubricated gearbox our portable Euroboor ECO.80S+ magnetic core drilling machine is able to tackle twist drilling tasks just as easily as big diameter annular cutter challenges. The innovative electronics  in this magnetic core drilling machine offer more safety, significantly reduce the risk of damage of the machine, tool and workpiece and protects the user in case of excessive vibrations or sudden displacement. The lifespan is considerably longer and you avoid high maintenance costs.

    0 บาท
  • สว่านแท่นแม่เหล็ก Euroboor ECO.100S+/TD แท่นปรับเลื่อนได้

    Magnetic drilling machine Ø 12 - 100 mm / 31 kg

    The portable Euroboor ECO.100S+/TD magnetic core drilling machine has an unique swivel base, which allows the magnet to rotate 30º both ways and slide 15 – 20 mm forwards and backwards. This magnetic core drilling machine cuts holes up to ø 100 mm and is particularly suitable for tapping. It not only benefits from an oil lubricated gearbox, but also from innovative electronics which offer more safety, significantly reduce the risk of damage of the machine, tool and workpiece and protects the user in case of excessive vibrations or sudden displacement. The lifespan is considerably longer and you avoid high maintenance costs.

    0 บาท
