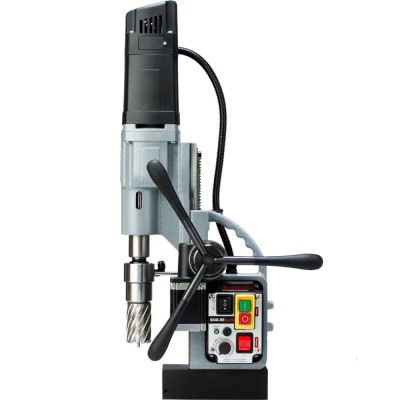

สว่านแท่นแม่เหล็กไฟฟ้าแบบเจาะเองอัตโนมัติ Euroboor ECO.55S+/TA

มุมมองเพิ่มเติม

สว่านแท่นแม่เหล็กไฟฟ้าเจาะต๊าปเกลียว ป้อนเจาะอัตโนมัติ Euroboor ECO.55S+/TA Auto feed

รหัสสินค้า: 11055201242004

Magnetic drilling machine Ø 12 - 55 mm / 15.8 kg

The portable Euroboor ECO.55S+/TA is our magnetic core drilling machine which will actually drill holes in metal with the highest efficiency for you. This magnetic core drilling machine benefits from an automatic drilling functionality with automatic return for annular cutters. Furthermore, the ECO.55S+/TA has a digital display which show the ideal working load and the Smart Restart Technology prevents excessive tool wear and failure. The machine profits also from innovative electronics which offer more safety, significantly reduce the risk of damage of the machine, tool and workpiece and protects the user in case of excessive vibrations or sudden displacement. The lifespan is considerably longer and you avoid high maintenance costs.

สถานะของสินค้า : สินค้าพร้อมส่ง

0 บาท

This machine features:





 Particularly suitable for tapping

 Overheat & overload protection

 Gyro-Tec

 Power surge & fluctuation protection

 Carbon brush wear indicator & automatic shut-off

Additional features

Automatic drill functionality with automatic return for annular cutters

Two-speed oil lubricated gearbox

Digital display showing ideal power usage

Smart Restart technology

Right/left rotating functionality

Electronic speed adjustment

Easily accessible carbon brushes. Motor will automatically shut-off in case of replacement

High-accuracy capstan hub

Morse Taper 3 spindle with integrated tool cooling and lubrication

LED load indicators

Integrated slide for:

  High accuracy

  Enlarged lifecycle

  Minimal vibration

High-precision height adjustment for:

  Low maintenance

  Minimal wear correction

Strong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore lasts longer

Reduced risk of damaging machine, tools and workpiece and hurting operator

Suitable for use in areas and workplaces where power supply is of less quality

Reduced risk of armature damage

Reduced risk of control unit(s) damage

Timely service notification to avoid additional cost by unexpected downtime or unnecessary part replacement

Technical data

Annular cutting Ø 12 - 55 mm
Twist drilling Ø 1 - 23 mm
Countersinking Ø 10 - 60 mm
Tapping M3 - M20
Length 345 mm
Width 305 mm
Height 490 - 660 mm
Stroke 170 mm
Weight 15.8 kg*
Magnet (l x w x h) 168 x 84 x 49 mm
Magnetic force 1,850 kg
Motor power 1600 W
Total power 1,700 W
Speed (no load) (I) 60 - 275 rpm
(II) 100 - 500 rpm
Speed (load 1,600 W) (I) 60 - 275 rpm
(II) 100 - 500 rpm
Spindle (Weldon) MT3 19.05 mm
Voltage 220 - 240 V / 50 - 60 Hz
*Exclusive power cord and handles
แบรนด์ ยูโรบอร์
น้ำหนัก 15.8
